Remote Control Electric Chain Hoist with 20t Load Capacity and OEM Customization for Industrial Use

Place of Origin : Henan

MOQ : 1 set

Price : CN¥2,090.58/sets >=13 sets

Payment Terms : T/T

Delivery Time : 7 days

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty : 1 Year

Max. Lifting Load : 20t

Max. Lifting Height : 25M, 7.5m, 6m, 20M

Core Components : Bearing, Gear

product name : Electric Chain Hoist Electric Trolley Lifting

Condition : New100%

OEM : Avaliable

Usage : Construction Hoist, Mining Hoist, bridge crane

Voltage : Custuestomer's Request

Color : Custuestomer's Request

Contact Now

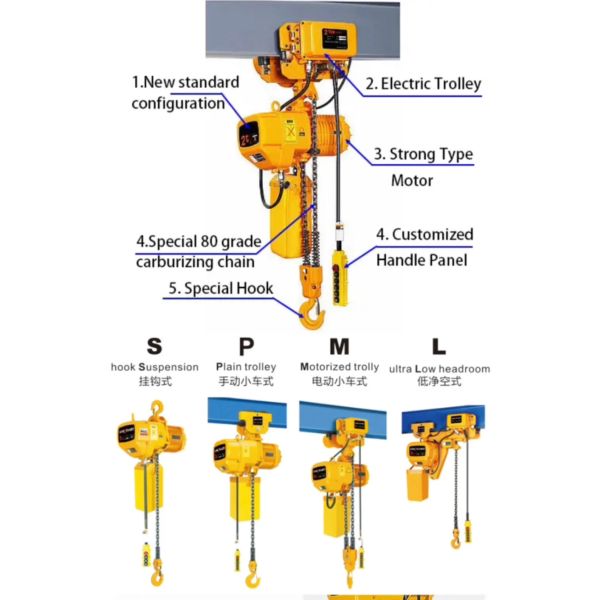

OEM Remote Control Electric Hoist 3 Ton Electric Chain Hoist

This heavy-duty electric chain hoist is designed for various industrial environments with a maximum lifting capacity of 3 tons and remote control operation.

Product Overview

Remote Control Electric Chain Hoist with 20t Load Capacity and OEM Customization for Industrial Use

1T–5T

Grade: Adapts to harsh environments and working conditions, with a high-standard M5 rating.
Housing: Lightweight yet robust housing with high heat dissipation efficiency; fully sealed design suitable for use in harsh working environments.
Phase Reversal Protection: A special electrical device that prevents the control circuit from operating if the power supply is wired incorrectly.
Limit Switches: Limit switches are installed for both upward and downward lifting of heavy loads, automatically stopping the motor to prevent chain overtravel and ensure safety.
24V/36V Safety Device: Prevents accidents in case of switch leakage during operation.
Brake System: Enables instant braking when the power supply is cut off.
Chain Bag: Lightweight, aesthetic, and durable.
Chain: Imported FEC80 super-strength heat-treated alloy steel chain.

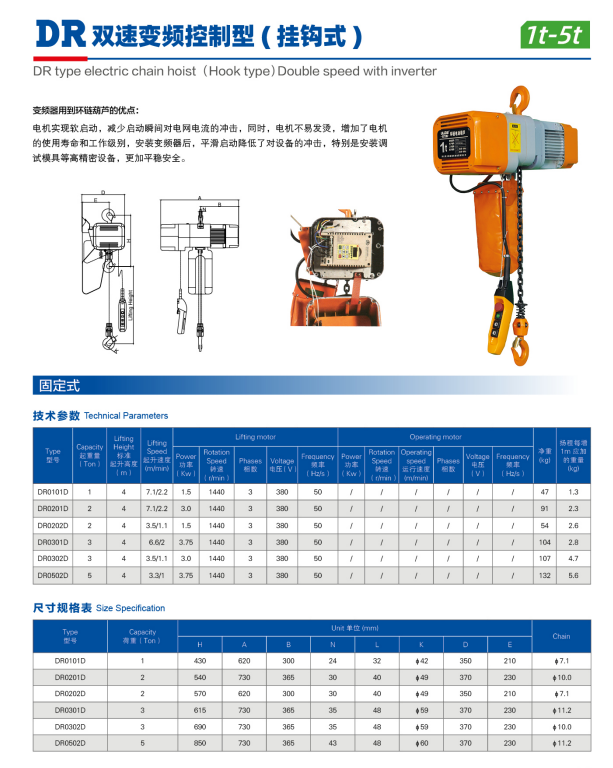

DR type electric chain hoist (Hook type) Double speed with inverter

Advantages of using a frequency converter on electric chain hoists:
The motor realizes soft start, reducing instantaneous current impact on the power grid. Meanwhile, the motor runs with less heat generation, extending service life and improving working class. Smooth start lowers mechanical impact on the whole equipment. It is especially stable and safe for high-precision operations such as mold installation and commissioning.

DR type electric chain hoist (Super-Low head room type) single speed

It features an optimized unique structure that minimizes the distance between the hoist body and beam rail. It is ideal for low-height buildings, especially temporary workshops and working sites requiring larger effective lifting space.

Technical Specifications

Specification	Value
Place of Origin	Henan
Warranty	1 Year
Video Outgoing Inspection	Provided
Machinery Test Report	Provided
Max. Lifting Load	20t
Max. Lifting Height	25M, 7.5m, 6m, 20M
Core Components	Bearing, Gear
Product Name	Electric Chain Hoist Electric Trolley Lifting
Condition	New 100%
OEM	Available
Usage	Construction Hoist, Mining Hoist, Bridge Crane
Voltage	Customer's Request
Color	Customer's Request

Company Profile

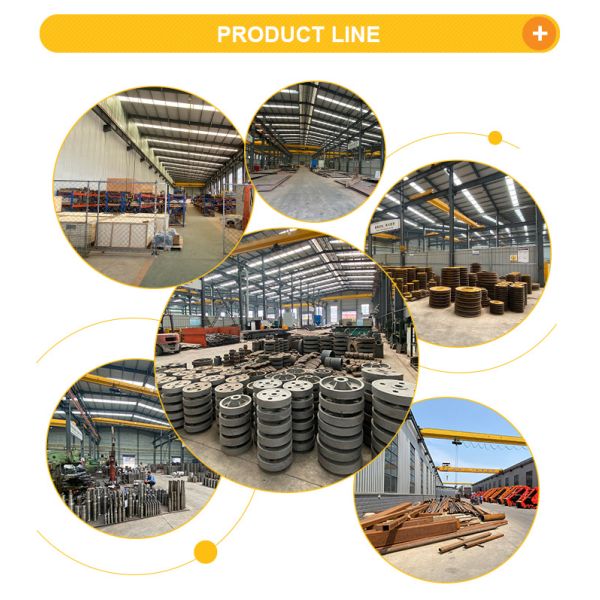

Production Line

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

What information should I provide when inquiring?

Crane Capacity
Crane Span
Lifting Height
Work Duty (A3/A4/M3...)
Traveling Length
Control Method: Standard operating methods include remote control with push buttons or cabin control with joystick
Any spare parts like rails, bus-bar?
Local Power Supply
Quantity
Lifting Object
Destination Port

More details or drawings are always better. Note: All parameters can be customized according to your specific needs.

Can this type work in hazardous environments?

Yes! We can customize hoists for acid-proof or explosion-proof applications to suit hazardous environments.

Can you provide serious lifting tools?

Yes, we can provide any lifting tools such as lift sling belts, lift clamps, grabs, magnets, or other special equipment as per your requirements.

How do you guarantee the quality?

We maintain constant quality checks during the manufacturing process and conduct strict equipment testing before shipment. We provide quality certificates with all our products.

After-Sale Service

Installation service for overhead cranes available with video tutorial support for the entire installation process
7/24 remote assistance for crane installation guidance and commissioning
We welcome customer suggestions regarding pricing and products
For any questions, please contact us freely by email or telephone
